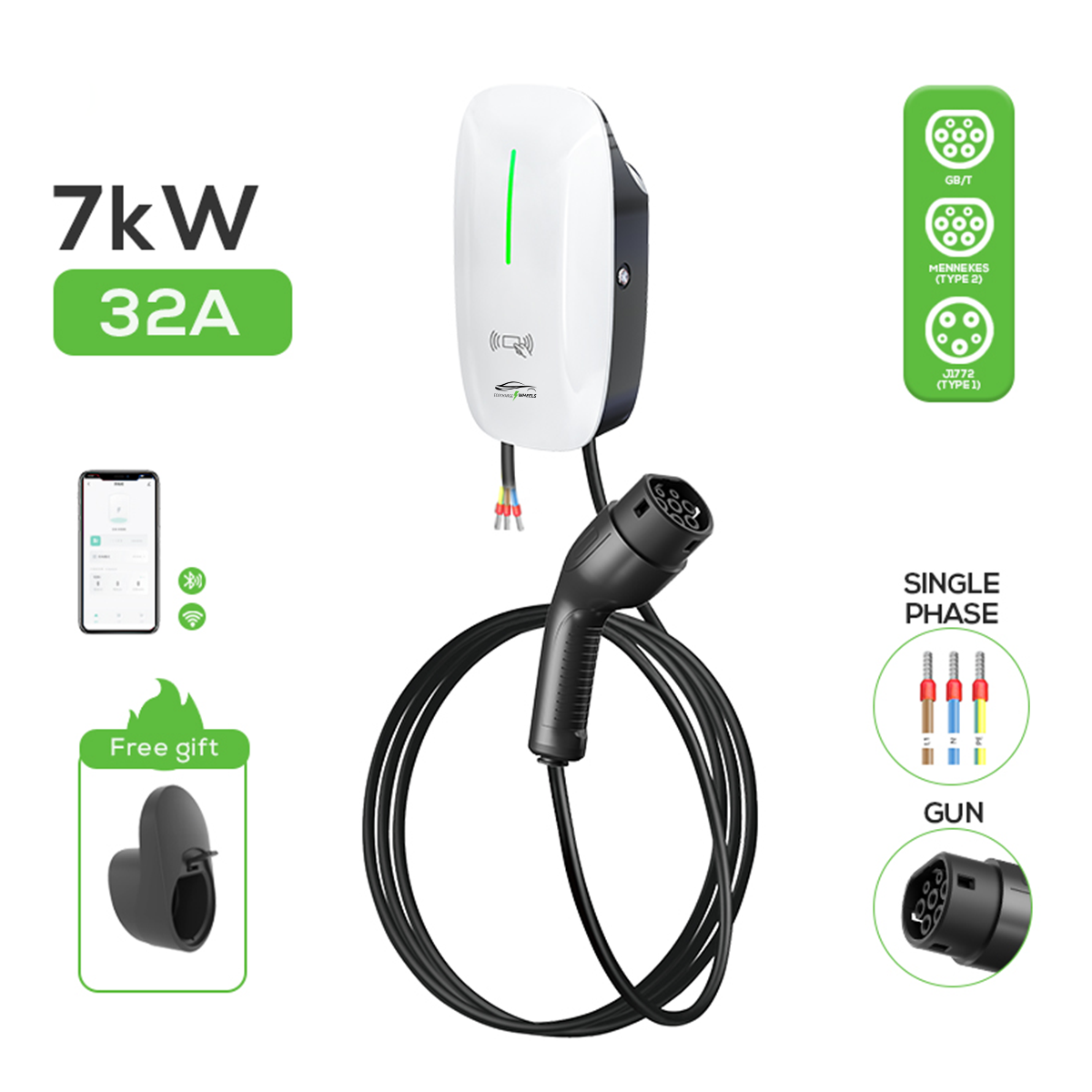

EV Charge 7KW
Wallbox 32A Single Phase
Best selling premium quality from our signature products range. Power Up Your EV with Our 7kW 32A Single-Phase Wallbox Charger – Fast, Reliable, and Compact! Designed for effortless home charging, it ensures efficient performance while keeping your electric journey seamless and eco-friendly.
Packaging and Delivery
| Selling Units: | Single item |
|---|---|
| Single package size: | 56X34X27 cm |
| Single gross weight: | 5.000 kg |
Key Attributes
| Interface Standard | Type 2 Single phase |
|---|---|
| Output Current | AC |
| Output Power | 7kW |
| Input Voltage | 400v |
| Purpose | for retrofit/upgrade |
| Condition | New |
| Model Number | DY0340 |
| Brand Name | Ecochargewheels |
| Charging Port | Type 2 |
| Warranty | 12 Months |
| Use environment | indoor / outdoor |
| Cable length | 5 Meters(UL/TPU) |

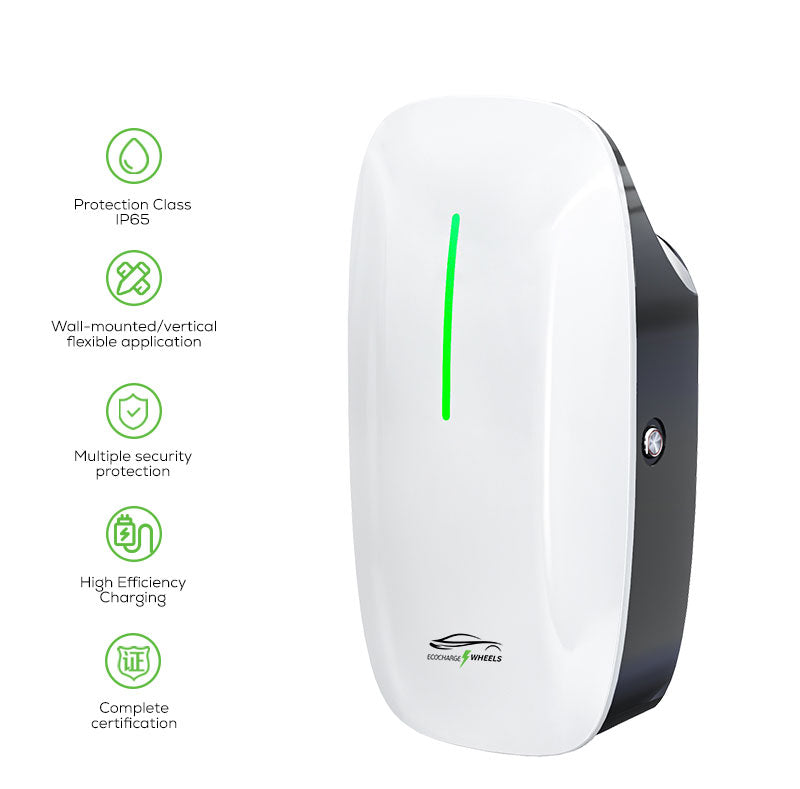

| Protection grade | IP65 |
| Single package size | 285*147*340 mm |
Product Parameters
| Standard | Type2 |
|---|---|
| Product Model | TJ series |

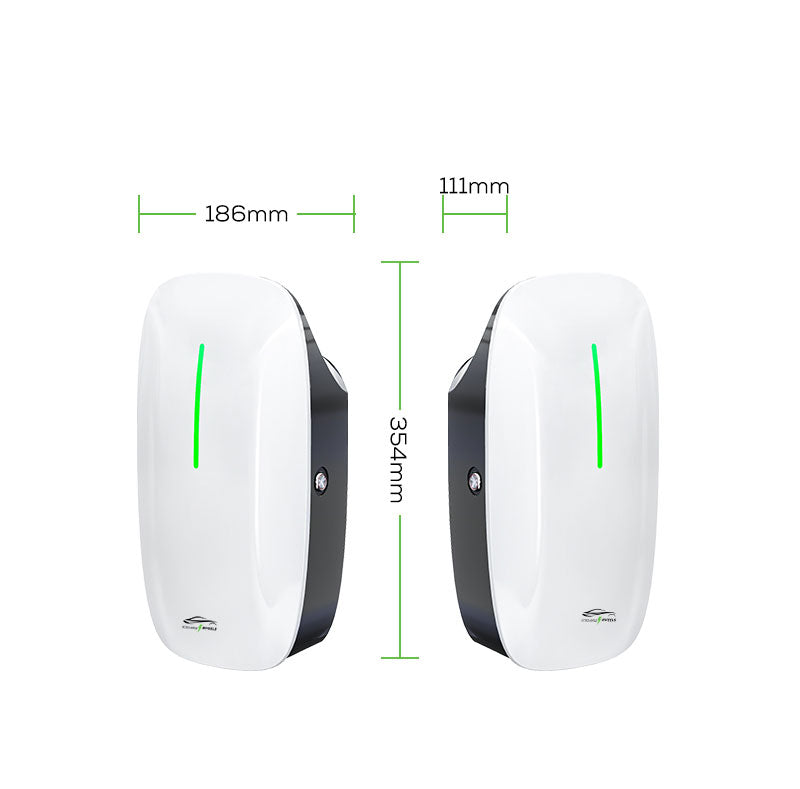

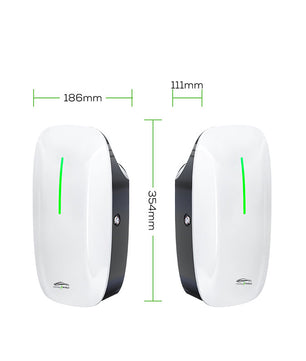

| Size | 354*186*111mm |
| Voltage | 230Vac±15% (Single phase) 400Vac±15% (Three phase) |
| Power / Amperage | 3.5kW /16A 7.6kW / 32A 11kW / 16A 22kW / 32A |
| Installation Method | Indoor/Outdoor |
| Frequency | 50-60Hz |
| Charging Interface | IEC 61851 |

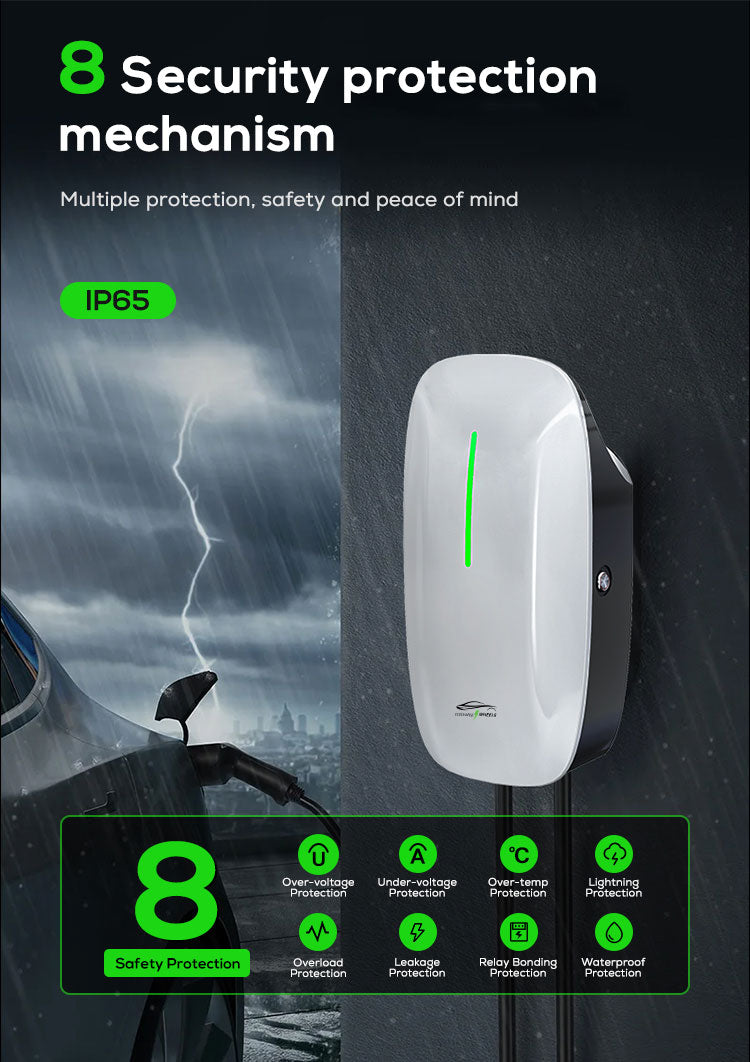

| Multiple Protection | Ground protection, leakage protection, over-voltage protection, over-current protection, leakage protection, over-temperature protection, lightning protection, etc. |

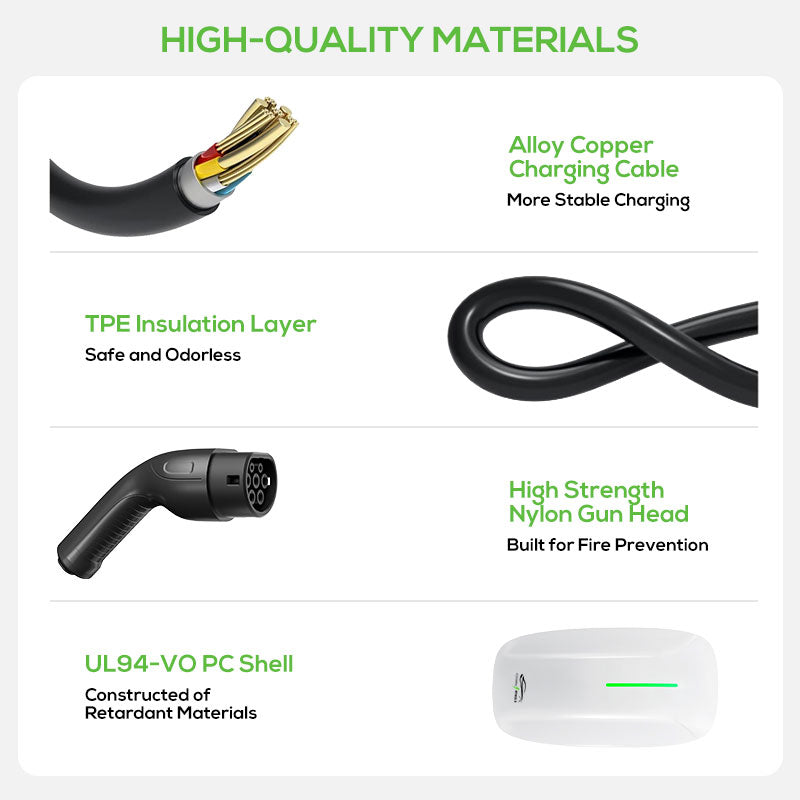

| Enclosure Material | PC+ASA |

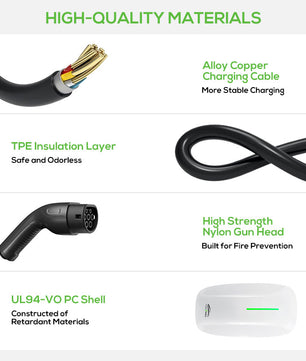

| Cable Material | TPU |
| Operating Temperature | 80°C (protection) 60°C (recovery) Operating Temperature -25℃~+50℃ Storage Temperature -40℃~+80℃ |
| Indoor / Outdoor | IP65 |
| Relative Humidit | Up to 95% non-condensing |
| HCI | 4.3 inch square screen, 3.5 inch round screen, no screen |
| RCD | Type A（Standard）or Type A+DC6 |
| Color | Black (Standard) ，White, Red, Green, Blue, Pink |

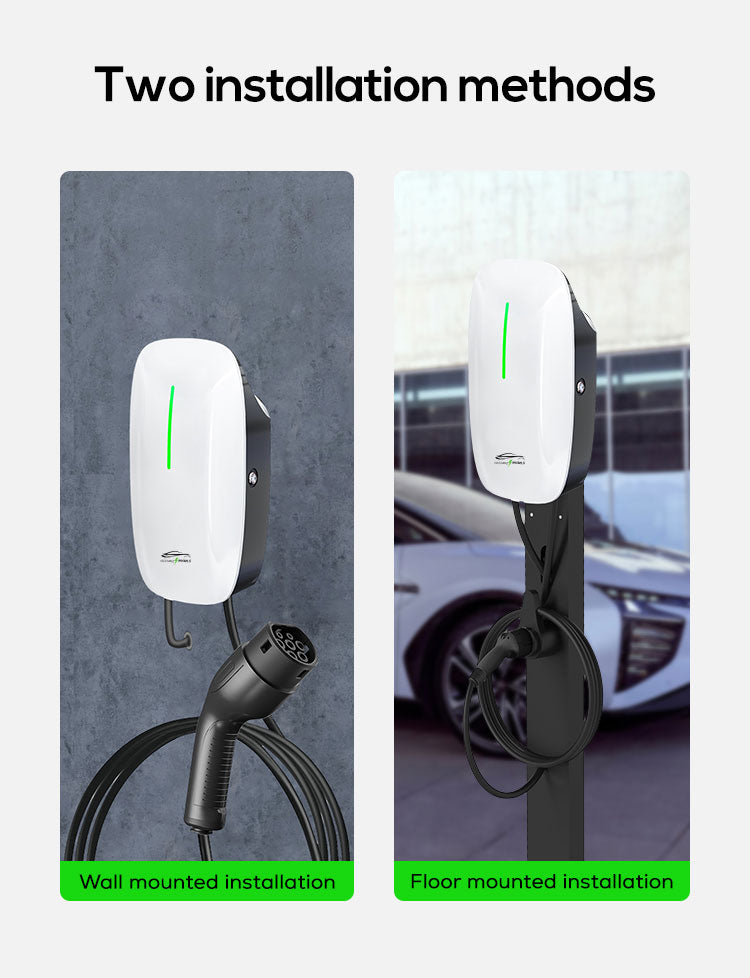

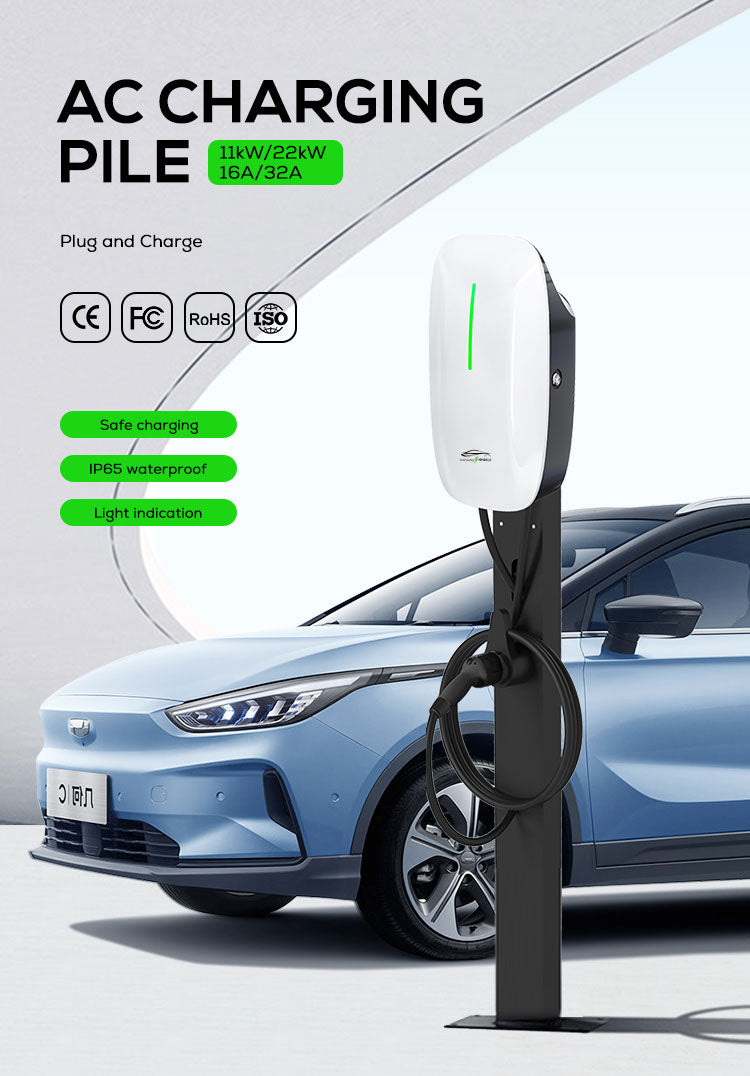

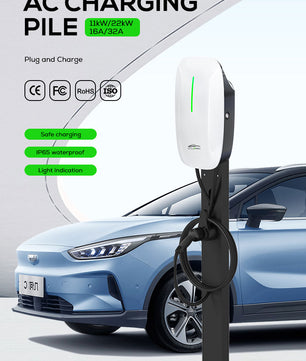

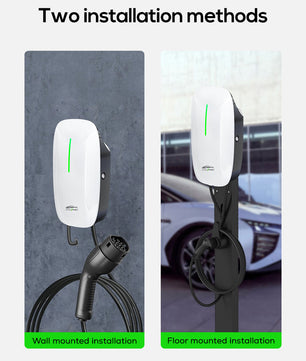

| Installation Method | Wall mounted/with column |
| Working Mode | Domestic (Standard) /commercial |
| Ocpp | ocpp1.6J (Standard) or ocpp2.0 |
| Supported Features (optional) | Bluetooth / Wi-Fi，4G，Ethernet，RFID |
| Cable Length（Accept customization） | 18ft (5m) Standard |
| Current Regulation | 8A-10A-13A-16A-20A-24A-32A |
ECO CHARGE WHEELS
Power & Precision
Fast & Reliable Charging for All EVs
Enjoy hassle-free charging at home with a powerful 7KW charger, perfect for Teslas and most electric vehicles.
Waterproof & Durable Design
Built to withstand the elements, with a 1-meter waterproof input cable and 5-meter output cable, ensuring safe and reliable use.

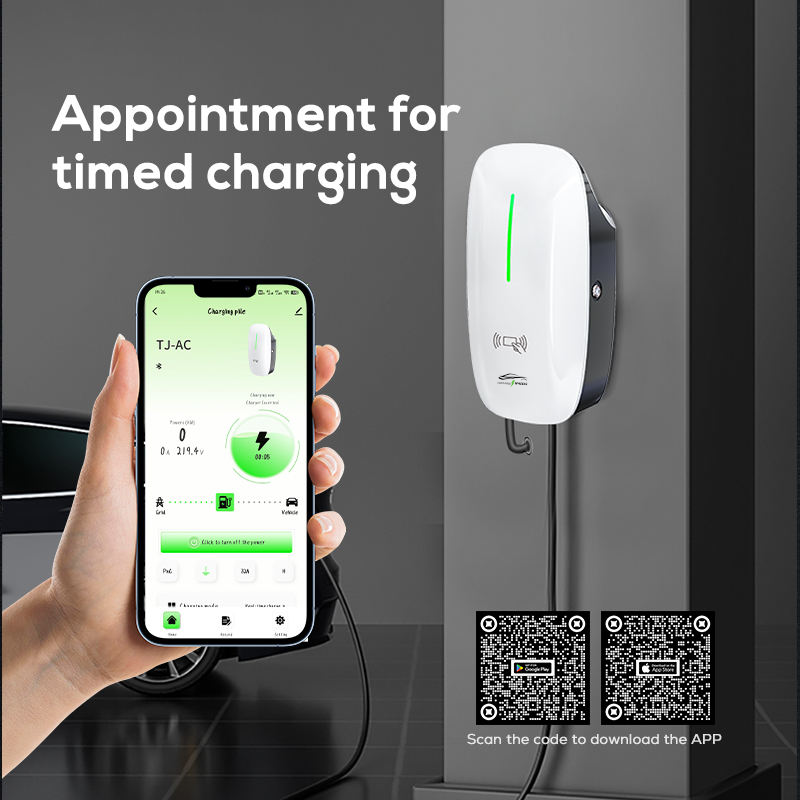

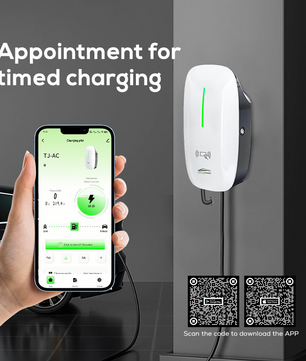

Convenient Charging with Remote Control Options
Enjoy effortless charging with features like Bluetooth and Wi-Fi connectivity, swipe card start-up, app-based control, and charging sharing capabilities.
Product Packaging Information
Material is high-quality corrugated paper and size is 54 × 32 × 25 cm designed to fit securely and prevent movement during transit.
Do you have
Any questions?
What types of EV chargers do you offer?
We offer a variety of EV chargers, including:
● Level 2 Home Chargers: Ideal for residential use, providing faster charging than standard outlets.
● Fast Chargers: Suitable for commercial and public use, offering quick charging options for electric vehicles.
● Portable Chargers: Easy-to-carry options for on-the-go charging.
● Level 2 Home Chargers: Ideal for residential use, providing faster charging than standard outlets.
● Fast Chargers: Suitable for commercial and public use, offering quick charging options for electric vehicles.
● Portable Chargers: Easy-to-carry options for on-the-go charging.
Are your EV chargers compatible with all electric vehicles?
Yes, our chargers are designed to be compatible with most electric vehicles, including models from Tesla, BMW, Nissan, Audi, Jaguar, and more. Each product page specifies the vehicles that the charger supports.
How long does it take to charge an electric vehicle?
To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.
Do you offer installation services for your EV chargers?
Yes, we provide professional installation services through certified electricians. Our team will ensure that your EV charger is safely and properly installed at your home or business location.
Can I track my order?
Yes, once your order has been shipped, you will receive a tracking number via email, which you can use to monitor the status of your delivery.
Do you offer international shipping?
Currently, we ship within the UK only. However, we are working on expanding our shipping options to other regions. Please stay updated through our website for future announcements.
What warranty do you offer on your chargers?
Our chargers come with a manufacturer’s warranty that typically lasts 1 year. This warranty covers defects in materials and workmanship. Please refer to the specific product page for warranty details.
What payment methods do you accept?
We accept multiple payment options, including:
● Major credit and debit cards (Visa, Mastercard, American Express)
● PayPal
● Direct bank transfers
● Major credit and debit cards (Visa, Mastercard, American Express)
● PayPal
● Direct bank transfers
What is your return policy?
We offer a 30-day return policy. If you are unsatisfied with your purchase, you can return the product within 30 days, as long as it is in its original condition. For detailed information, please refer to our return policy.
How do I install my EV charger?
If you choose to self-install your charger, you can follow the installation instructions provided with the product. However, for safety and to ensure proper functioning, we highly recommend using our professional installation service.
Are your chargers energy-efficient and eco-friendly?
Yes, our EV chargers are designed with energy efficiency in mind. By switching to electric vehicle charging, you are also contributing to a more sustainable future.
